Mobile Playground Onboard Air System

Mobile Playground Onboard Air System

Part Number: 50009
$714.95
$714.95
Mobile Playground Onboard Air System
Mobile Playground Onboard Air System

Mobile Playground Onboard Air System

Mobile Playground Onboard Air System

Part Number: 50009
$714.95
$714.95
Mobile Playground Constant Duty OBA is powered by a pair of 380C pewter compressors, operates from a 1.5 gallon tank at 200PSI and is capable of inflating tires up to 40”. VIAIR’s Toy hauler OBA’s are powerful systems capable of fast tire inflation and many other pneumatic tasks. Featuring dual compressors, extension hoses and different size tanks to meet spacing needs, these kits are a must for anyone hauling long trailers in need of serviceable air.

Mobile Playground Onboard Air System

Designed By

VIAIR Corp

Tailored for RV

Many tires, high pressure, long reach

Reliable & Convenient

Highly efficient and portable

What’s in the Box

Specifications

Performance

Fill Rates

Resources

SPECS:

  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI)
  • Max. Working Pressure: 200 PSI
  • Combined Max. Amp Draw: 46-Amps
  • Ingress Protection Rating: IP67
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F
  • Dimensions: 9″L x 4″W x 6.75″H (Each Unit)

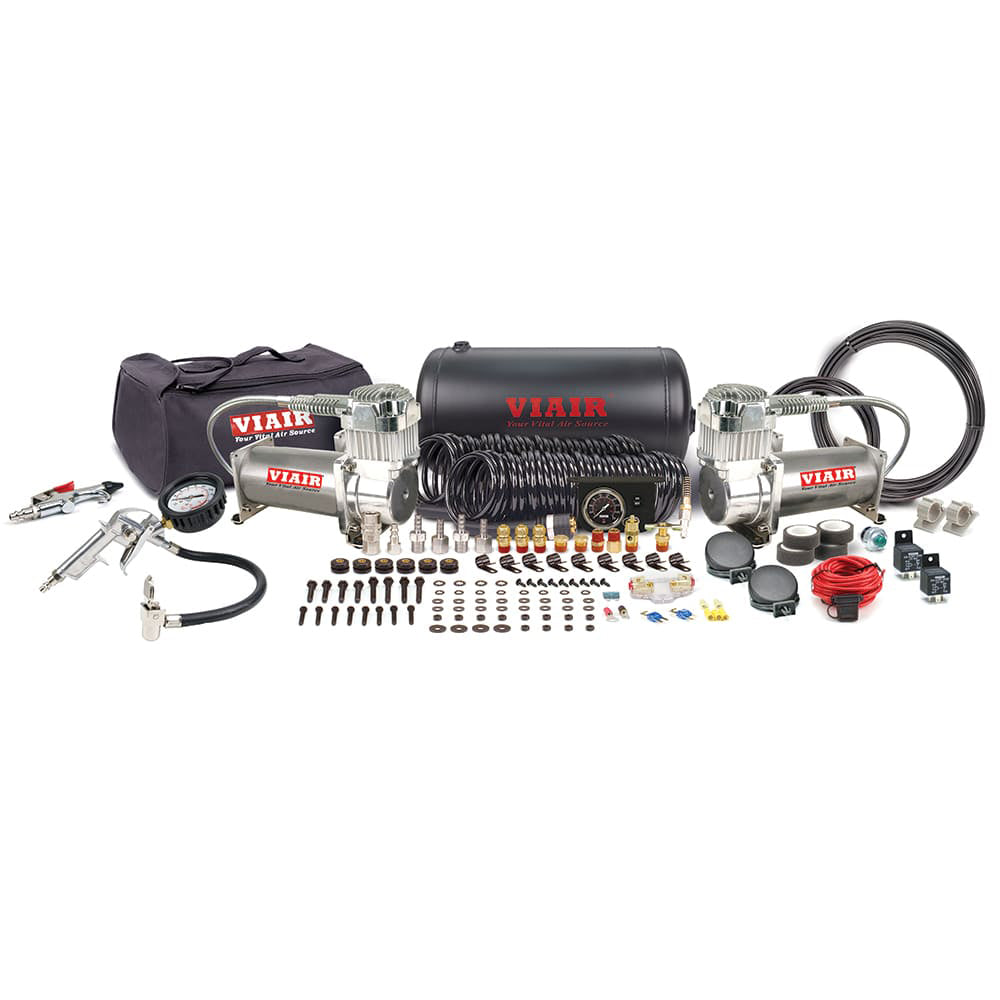

FEATURES:

  • (2) 380C 200 PSI VIAIR®Pewter Air Compressors
    w/Thermal Overload Protectors
  • 1.5 Gallon Matte Black VIAIR Air Tank (200 PSI)
  • Illuminated Dash Panel Gauge Kit, Black Face 200 PSI
  • Pressure Switch (165 PSI on, 200 PSI off)
  • (2) 40-Amp 4-Prong Relays
  • Mini ANL Fuse Holder w/ 60-Amp Fuse
  • Tire Inflation Gun w/ Mechanical 200 PSI Gauge
  • (2) 30ft. Coil Hose with Quick Connect and Stud
  • Rubber Tipped Blow Gun
  • 250PSI Safety Valve
  • (2) Air Filter Housing w/ Replacement Air Filter Elements
  • 20ft. Freeze Resistant 12-Gauge Wire
w/ Inline Fuse Holder
  • VIAIR Storage Bag

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

TIRE FILL RATE

TANK FILL RATE

Product Resources

Find all the information available for this product

User Manual Wiring Diagram Plumbing Diagram
