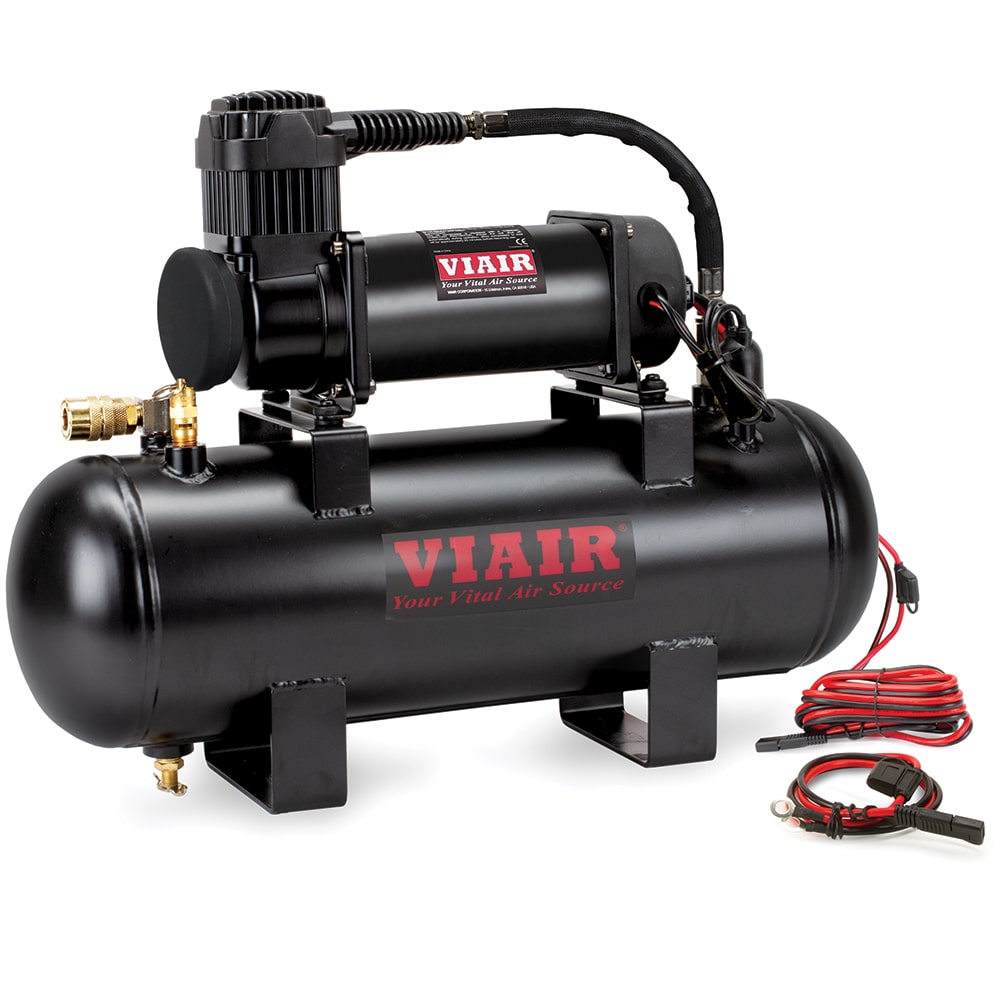

| FEATURES |
|---|
| – 2.0-Gallon Air Tank |
| – 2-Pin SAE Connector Attachment with Terminal Rings |
| – 40-Amp Inline Fuse Holder |
| – Mounting Hardware |
| – |
| – |
| – |
| – |
| – |
| – |
| SPECIFICATIONS |
|---|
| – 12-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 33% @ 100 PSI |
| – Max. Working Pressure: 150 PSI |
| – Max. Amp Draw: 30-Amps |
| – Ingress Protection Rating: IP54 |
| – Max Ambient Temp: +158°F |
| – Min Ambient Temp: -40°F |
| – Dimensions: 19″L x 5.9″W x 14.5″H |
| – Net Weight: 22.10 lbs. |
| – Power Cord Length: 8 ft. |
| RECOMMENDED COMPONENTS | |||||
|---|---|---|---|---|---|
| – 160PSI Tire Inflator Kit (P/N 00043) | |||||
| – 180 PSI Digital Tire inflator kit (P/N 00044) | |||||
| – Blow Gun (P/N 00045) | |||||
| – Inline Pressure Regulator (P/N 90150) | |||||
| – | |||||
| – | |||||
| – | |||||
| – | |||||
| – | |||||
* For 12V Only.
PERFORMANCE DATA
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 2.62 | 16 | 0 | 74.0 | 16 |
| 10 | 2.39 | 18 | 1.0 | 65.0 | 20 |
| 20 | 2.21 | 20 | 2.0 | 60.0 | 23 |
| 30 | 2.11 | 22 | 3.0 | 56.0 | 25 |
| 40 | 2.01 | 24 | 4.0 | 53.0 | 27 |
| 50 | 1.93 | 25 | 5.0 | 49.0 | 28 |
| 60 | 1.84 | 26 | 6.0 | 46.0 | 28 |
| 70 | 1.73 | 42.0 | 7.0 | 42.0 | 28 |
| 80 | 1.65 | 27 | 8.0 | 38.0 | 28 |
| 90 | 1.52 | 27 | 9.0 | 35.0 | 27 |
| 100 | 1.45 | 27 | 10.0 | 31.0 | 27 |
| 110 | 1.35 | 27 | |||
| 120 | 1.26 | 27 | |||
| 130 | 1.19 | 27 | |||
| 140 | 1.08 | 27 | |||
| 150 | 1.01 | 26 |
* Supply Voltage: 13.8 Volts
FILL RATES
| 31″x10.5″ | Fill Rate |
|---|---|
| 0 to 30 PSI | 3 min. 00 sec. (± 10 sec.) |
| 15 to 30 PSI | 1 min. 35 sec. (± 05 sec.) |
| 33″x12.5″ | Fill Rate |
| 0 to 30 PSI | 4 min. 20 sec. (± 10 sec.) |
| 15 to 30 PSI | 2 min. 05 sec. (± 05 sec.) |
| 35″x12.5″ | Fill Rate |
| 0 to 30 PSI | 5 min. 20 sec. (± 15 sec.) |
| 15 to 30 PSI | 2 min. 45 sec. (± 05 sec.) |
| 2.0 Gallon Tank | Fill Rate |
| 0 to 150 PSI | 2 min. 15 sec. (± 10 sec.) |
| 110 to 150 PSI | 35 sec. (± 05 sec.) |
* Tolerances (±) define a range within which actual performance may fall.
