| FEATURES |
|---|
| – Thermal Overload Protector |

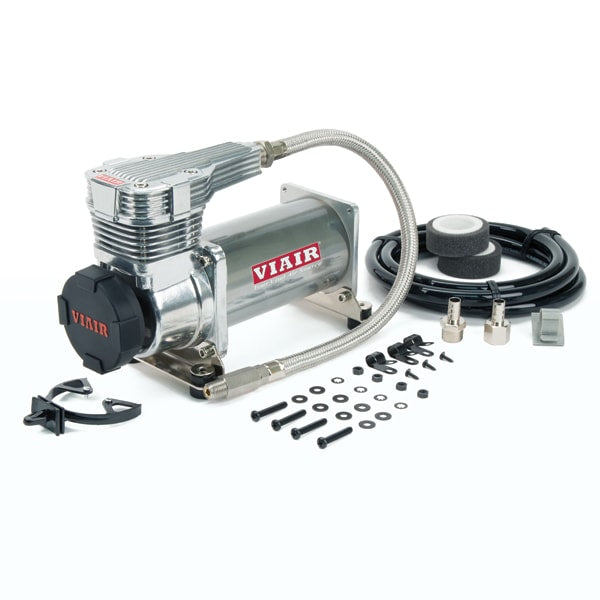

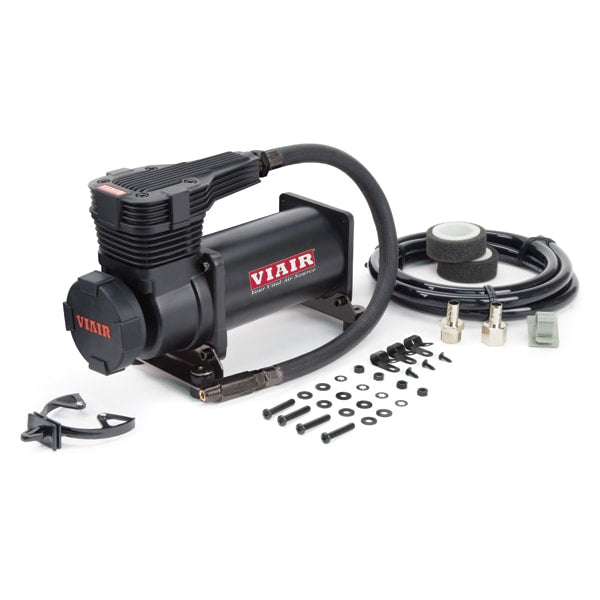

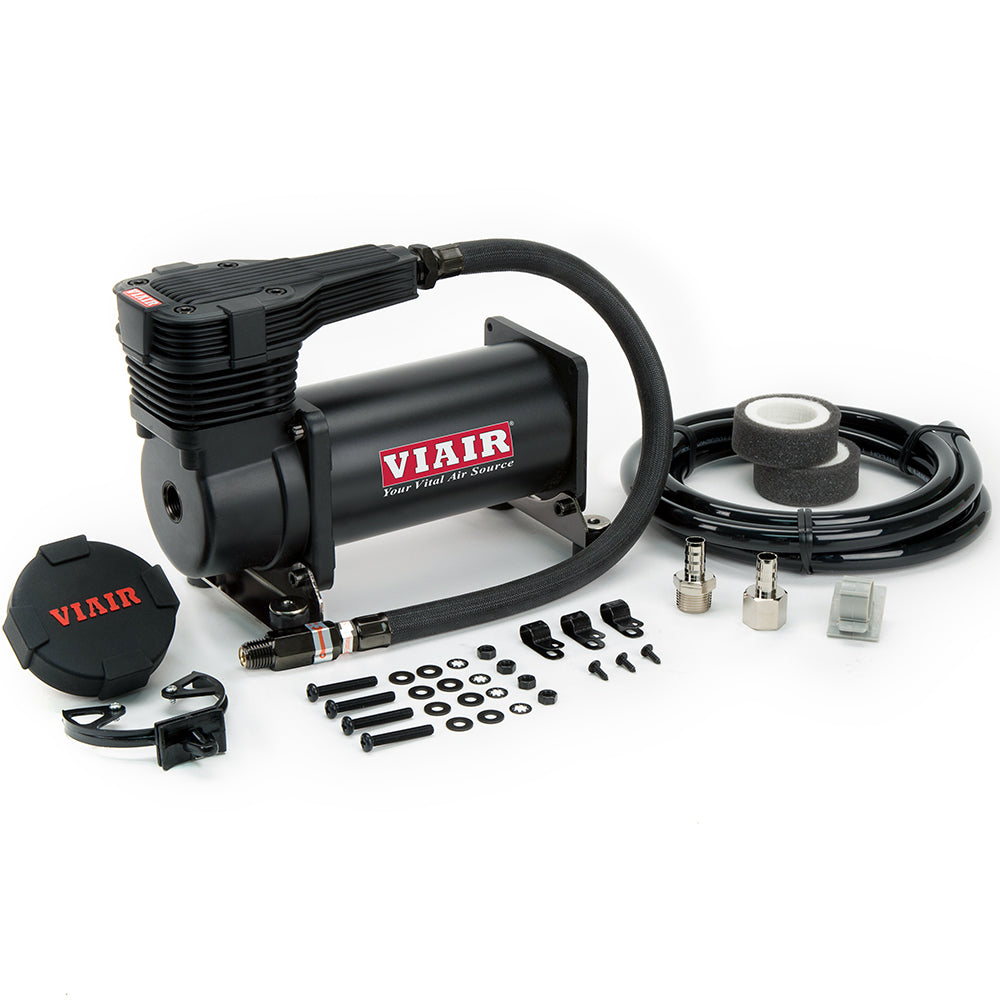

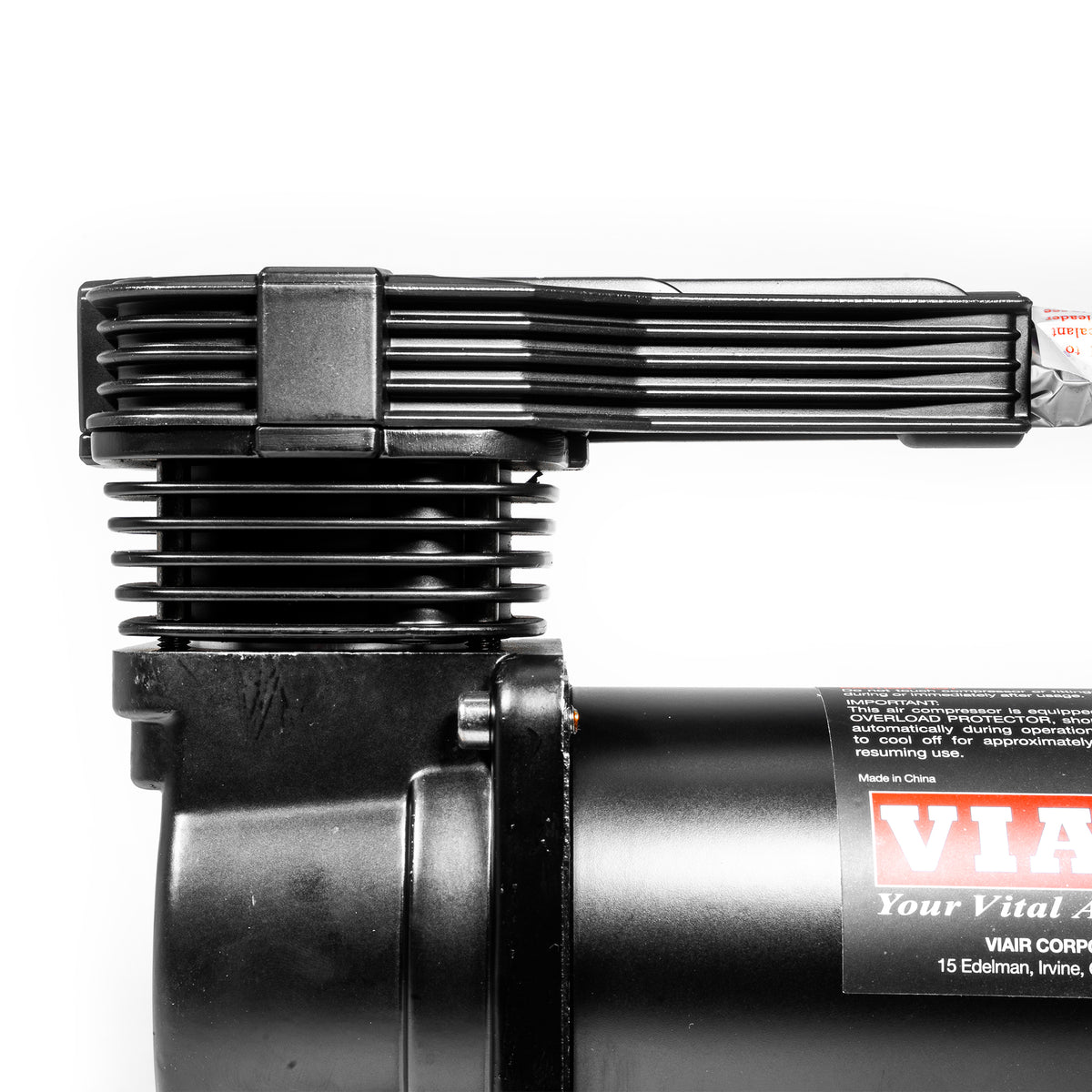

| – 425C (Platinum or Stealth Black) Compressor |
| – Stainless Steel Braided Leader Hose with Inline Check Valve |
| – Air Filter Assembly |
| – VIAIR Removable Filter Cover |
| – (2) Replacement Air Filter Elements |
| – Remote Mount Bracket |
| – Set of Remote Mount Fitting |
| – Set of Spare Air Filter Elements |
| – (2) Leader Hose Clips |
| – Air Line Clip with Included Hardware |
| – Mounting Hardware |
| – Heavy Duty Tube Style Fuse Holder (Up to 60-Amp fuse) |
| – 40-Amp Relay |
| – Air Line (For Remote Mount Filter Installation) |
| SPECIFICATIONS |
|---|
| – 12-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 50% @ 100 PSI |
| – Duty Cycle: 33% @ 175 PSI |
| – Max. Working Pressure: 175 PSI |
| – Max. Air Tank Size: 5.0 Gallon |
| – Max. Amp Draw: 30 Amps |
| – Ingress Protection Rating: IP67 |
| – Dimensions: 9.25″L x 4.14″W x 6.59″H |
| – Net Weight: 11.10 lbs. |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| RECOMMENDED COMPONENTS | |||||
|---|---|---|---|---|---|
| – 2.5 Gallon Tank (P/N 91028) | |||||
| – | |||||
| – | |||||
| – | |||||
| – | |||||
| – | |||||
| – | |||||
| – | |||||
| – | |||||
| – | |||||
| – | |||||
| – | |||||
| – | |||||
| – | |||||
| – | |||||
| – | |||||
| – | |||||
* For 12V Only.
Please Note: Use thread sealant for proper installation. Thread tape is not recommended.
Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
PERFORMANCE DATA
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 2.40 | 20 | 0 | 69.0 | 20 |
| 10 | 2.31 | 22 | 1.0 | 63.0 | 21 |
| 20 | 2.20 | 24 | 2.0 | 59.0 | 24 |
| 30 | 2.08 | 24 | 3.0 | 55.0 | 25 |
| 40 | 1.97 | 26 | 4.0 | 52.0 | 27 |
| 50 | 1.85 | 27 | 5.0 | 47.0 | 28 |
| 60 | 1.77 | 28 | 6.0 | 43.0 | 29 |
| 70 | 1.67 | 28 | 7.0 | 40.0 | 30 |
| 80 | 1.59 | 28 | 8.0 | 37.0 | 30 |
| 90 | 1.49 | 29 | 9.0 | 35.0 | 28 |
| 100 | 1.41 | 29 | 10.0 | 31.0 | 28 |
| 110 | 1.28 | 30 | 11.0 | 28.0 | 27 |
| 120 | 1.28 | 29 | 12.0 | 25.0 | 26 |
| 130 | 1.22 | 28 | |||
| 140 | 1.14 | 28 | |||
| 150 | 1.06 | 27 | |||
| 160 | 0.98 | 26 | |||
| 170 | 0.90 | 26 | |||
| 175 | 0.87 | 26 |
* Supply Voltage: 13.8 Volts
FILL RATES
| 2.0 Gallon Tank | Fill Rate |
|---|---|
| 0 to 175 PSI | 2 min. 25 sec. (± 10 sec.) |
| 140 to 175 PSI | 42 sec. (± 03 sec.) |
| 2.5 Gallon Tank | Fill Rate |
| 0 to 175 PSI | 3 min. 15 sec. (± 10 sec.) |
| 140 to 175 PSI | 55 sec. (± 03 sec.) |
| 5.0 Gallon Tank | Fill Rate |
| 0 to 175 PSI | 6 min. 15 sec. (± 15 sec.) |
| 140 to 175 PSI | 1 min. 57 sec. (± 05 sec.) |
* Due to redundant restrictions added to apparatus, for flow rate testing, actual flow rate at 0 psi may vary.
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to
