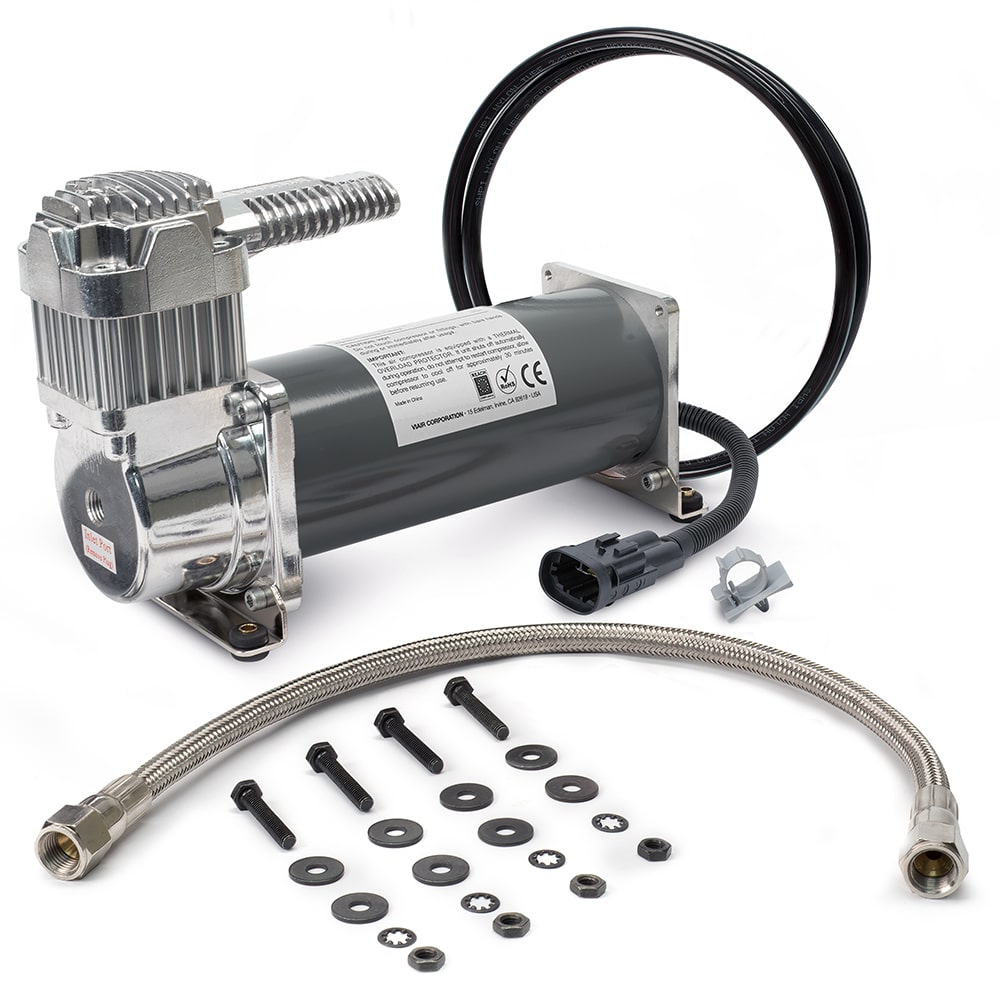

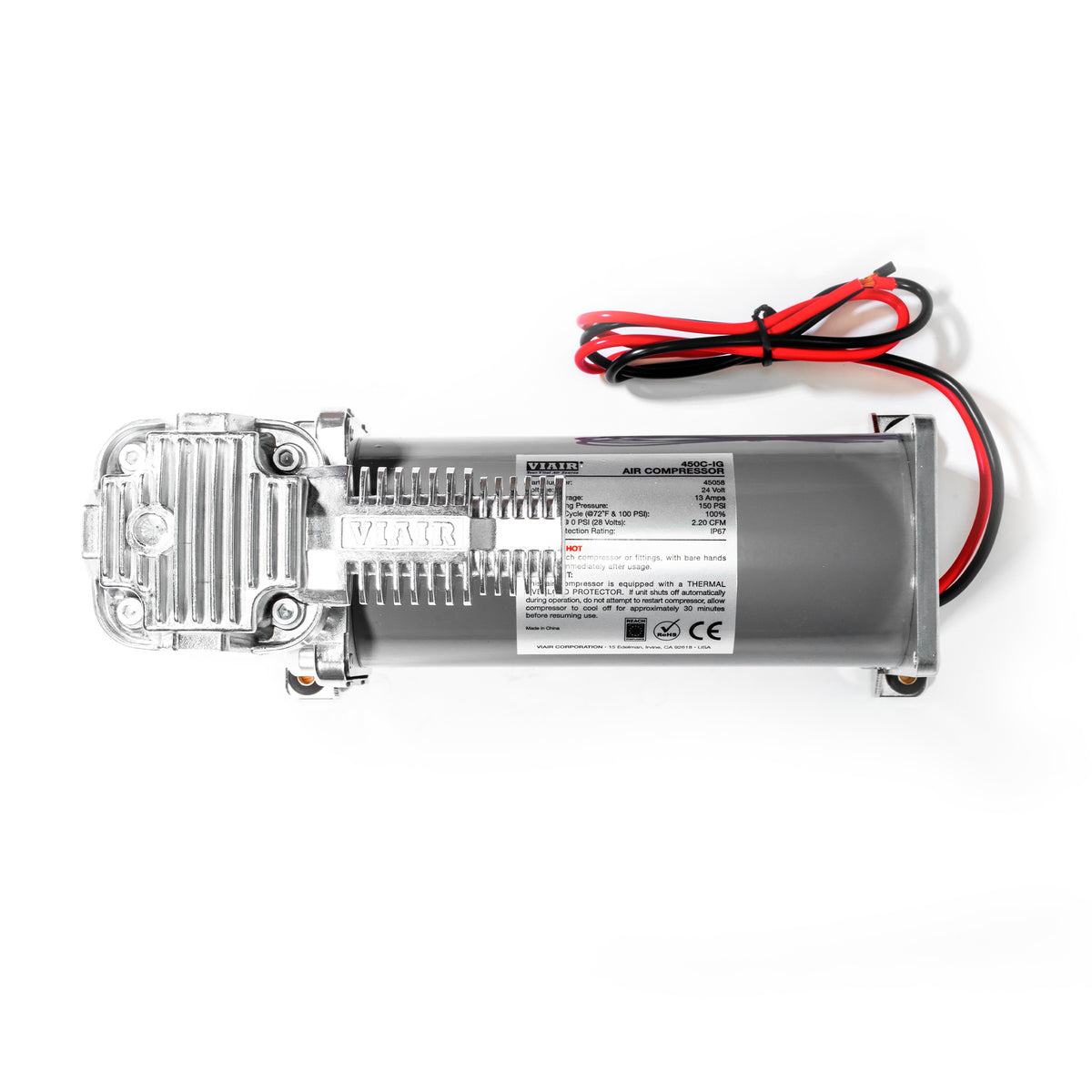

FEATURES |
---|
– Thermal Overload Protector |
– Vibration Isolators |
– Mounting Hardware |
– Heavy Duty 1/4″ NPT Check Valve |
– Stainless Steel Braided PTFE-Lined Leader Hose |
– Air Line for Remote Mount Air Filter |
– Remote Mount Air Filter Assembly |
– (2) Replacement Air Filter Elements |
– Installation Instructions |
– |
– |
SPECIFICATIONS |
---|
– 12-Volt / 24-Volt |
– Permanent Magnetic Motor |
– Duty Cycle: 100% @ 100 PSI |
– Max. Working Pressure: 150 PSI |
– Max. Air Tank Size: 5.0 Gallon |
– Max. 12V Amp Draw: 23-Amps |
– Max. 24V Amp Draw: 13-Amps |
– Ingress Protection Rating: IP67 |
– Max. Ambient Temp: +158°F |
– Min. Ambient Temp: -40°F |
– Dimensions: 11.25″L x 4″W x 6.75″H |
– Net Weight: 10.40 lbs. |
RECOMMENDED COMPONENTS | |||||
---|---|---|---|---|---|
– 0.5 Gallon Tank (P/N 91005) | |||||
– 1.0 Gallon Tank (P/N 91010, 91014) | |||||
– 1.5 Gallon Tank (P/N 91015) | |||||
– 2.0 Gallon Tank (P/N 91022) | |||||
– 2.5 Gallon Tank (P/N 91025) | |||||
– 12V Relay (P/N 93940, 93977, 93980) | |||||
– 24V Relay (P/N 93943, 93979) | |||||
– Pressure Switches (P/N 90100, 90101, 90102) | |||||
– Pressure Switches with Relay (P/N 90110*, 90111*, 90113*) |
|||||
– Sealed Pressure Switches (P/N 90212, 90217, 90223, 90226, 90227) |
* For 12V Only.
PERFORMANCE DATA
12-Volt Compressor | |||||
---|---|---|---|---|---|
PSI | CFM | A | BAR | LPM | A |
0 | 1.80 | 12 | 0 | 51.0 | 12 |
10 | 1.75 | 14 | 1.0 | 47.6 | 15 |
20 | 1.60 | 16 | 2.0 | 43.3 | 17 |
30 | 1.52 | 17 | 3.0 | 38.2 | 18 |
40 | 1.39 | 18 | 4.0 | 34.0 | 19 |
50 | 1.27 | 19 | 5.0 | 30.5 | 20 |
60 | 1.18 | 19 | 6.0 | 28.1 | 21 |
70 | 1.09 | 20 | 7.0 | 26.4 | 22 |
80 | 1.04 | 20 | 8.0 | 25.0 | 23 |
90 | 0.97 | 21 | 9.0 | 23.0 | 22 |
100 | 0.94 | 22 | 10.0 | 21.0 | 21 |
110 | 0.90 | 23 | |||
120 | 0.86 | 23 | |||
130 | 0.81 | 22 | |||
140 | 0.76 | 21 | |||
150 | 0.72 | 21 |
* Supply Voltage: 13.8 Volts
24-Volt Compressor | |||||
---|---|---|---|---|---|
PSI | CFM | A | BAR | LPM | A |
0 | 2.20 | 8 | 0 | 62.3 | 8 |
10 | 1.98 | 9 | 1.0 | 54.5 | 10 |
20 | 1.86 | 11 | 2.0 | 50.6 | 11 |
30 | 1.78 | 11 | 3.0 | 47.0 | 11 |
40 | 1.69 | 11 | 4.0 | 43.4 | 12 |
50 | 1.59 | 12 | 5.0 | 40.6 | 12 |
60 | 1.52 | 12 | 6.0 | 37.7 | 12 |
70 | 1.45 | 12 | 7.0 | 35.0 | 13 |
80 | 1.38 | 12 | 8.0 | 32.0 | 12 |
90 | 1.31 | 12 | 9.0 | 28.5 | 12 |
100 | 1.24 | 13 | 10.0 | 26.0 | 12 |
110 | 1.17 | 13 | |||
120 | 1.09 | 12 | |||
130 | 1.01 | 12 | |||
140 | 0.95 | 12 | |||
150 | 0.88 | 12 |
* Supply Voltage: 28.0 Volts
FILL RATES
12-Volt Compressor | |
---|---|
2.5 Gallon Tank | Fill Rate |
0 to 105 PSI | 1 min. 55 sec. (± 10 sec.) |
85 to 105 PSI | 28 sec. (± 05 sec.) |
0 to 145 PSI | 3 min. 02 sec. (± 10 sec.) |
110 to 145 PSI | 59 sec. (± 05 sec.) |
5.0 Gallon Tank | Fill Rate |
0 to 105 PSI | 4 min. 00 sec. (± 10 sec.) |
85 to 105 PSI | 58 sec. (± 05 sec.) |
0 to 145 PSI | 6 min. 25 sec. (± 15 sec.) |
110 to 145 PSI | 2 min. 11 sec. (± 10 sec.) |
24-Volt Compressor | |
---|---|
2.5 Gallon Tank | Fill Rate |
0 to 105 PSI | 1 min. 45 sec. (± 10 sec.) |
85 to 105 PSI | 25 sec. (± 05 sec.) |
0 to 145 PSI | 2 min. 40 sec. (± 10 sec.) |
110 to 145 PSI | 50 sec. (± 05 sec.) |
5.0 Gallon Tank | Fill Rate |
0 to 105 PSI | 3 min. 20 sec. (± 10 sec.) |
85 to 105 PSI | 50 sec. (± 05 sec.) |
0 to 145 PSI | 5 min. 15 sec. (± 15 sec.) |
110 to 145 PSI | 1 min. 45 sec. (± 10 sec.) |
