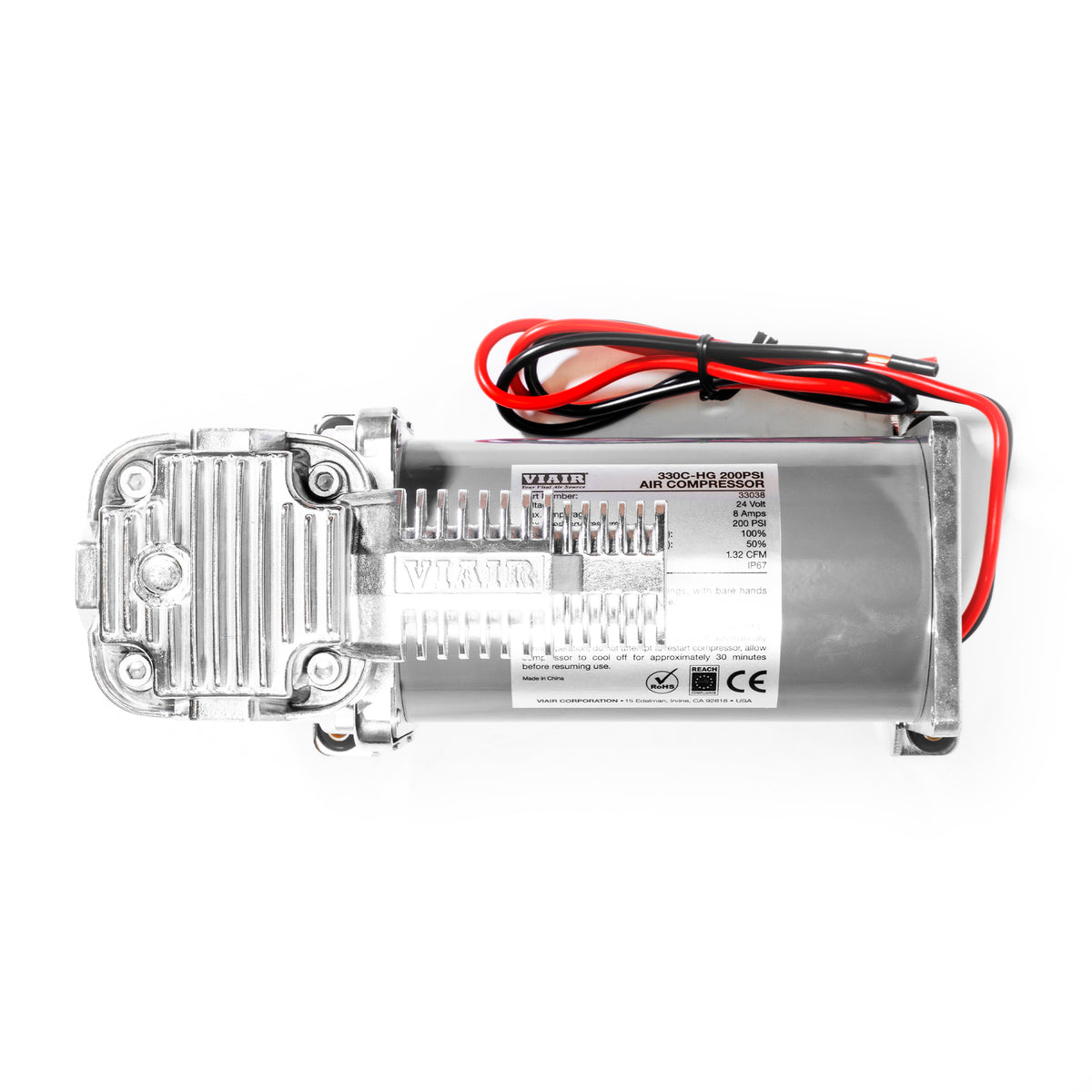

FEATURES |
---|
– Thermal Overload Protector |
– Vibration Isolators |
– Mounting Hardware |
– Heavy Duty 1/4″ NPT Check Valve |
– Stainless Steel Braided PTFE-Lined Leader Hose |
– Air Line for Remote Mount Air Filter |
– Remote Mount Air Filter Assembly |
– (2) Replacement Air Filter Elements |
– Installation Instructions |
– |
– |
– |
SPECIFICATIONS |
---|
– 12-Volt or 24-Volt |
– Permanent Magnetic Motor |
– Duty Cycle: 100% @ 100 PSI |
– Duty Cycle: 50% @ 200 PSI |
– Max. Working Pressure: 200 PSI |
– Max. Air Tank Size: 5.0 Gallon |
– Max. 12V Amp Draw: 16-Amps |
– Max. 24V Amp Draw: 10-Amps |
– Ingress Protection Rating: IP67 |
– Max. Ambient Temp: +158°F |
– Min. Ambient Temp: -40°F |
– Dimensions: 9″L x 4″W x 6.75″H |
– Net Weight: 8.25 lbs. |
RECOMMENDED COMPONENTS | |||||
---|---|---|---|---|---|
– 1.5 Gallon Tank (P/N 91015) | |||||
– 2.5 Gallon Tank (P/N 91028) | |||||
– | |||||
– | |||||
– | |||||
– | |||||
– | |||||
– | |||||
– | |||||
– | |||||
– | |||||
– | |||||
– |
* For 12V Only.
Please Note: Use thread sealant for proper installation. Thread tape is not recommended.
Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
PERFORMANCE DATA
12-Volt Compressor | |||||
---|---|---|---|---|---|
PSI | CFM | A | BAR | LPM | A |
0 | 1.43 | 7 | 0 | 41.0 | 7 |
10 | 1.04 | 8 | 1.0 | 28.0 | 9 |
20 | 0.95 | 9 | 2.0 | 25.0 | 10 |
30 | 0.88 | 10 | 3.0 | 23.0 | 11 |
40 | 0.85 | 11 | 4.0 | 21.0 | 12 |
50 | 0.78 | 11 | 5.0 | 20.0 | 12 |
60 | 0.74 | 12 | 6.0 | 17.0 | 13 |
70 | 0.71 | 12 | 7.0 | 15.0 | 13 |
80 | 0.64 | 13 | 8.0 | 14.0 | 13 |
90 | 0.58 | 13 | 9.0 | 12.0 | 14 |
100 | 0.55 | 13 | 10.0 | 10.0 | 14 |
110 | 0.51 | 13 | 11 | 9.0 | 14 |
120 | 0.46 | 14 | 12 | 8.0 | 13 |
130 | 0.42 | 14 | 13 | 6.0 | 13 |
140 | 0.39 | 14 | 14 | 4.0 | 13 |
150 | 0.35 | 14 | |||
160 | 0.32 | 14 | |||
170 | 0.28 | 13 | |||
180 | 0.25 | 13 | |||
190 | 0.21 | 13 | |||
200 | 0.18 | 13 |
* Supply Voltage: 13.8 Volts
24-Volt Compressor | |||||
---|---|---|---|---|---|
PSI | CFM | A | BAR | LPM | A |
0 | 1.40 | 4 | 0 | 39.7 | 4 |
10 | 1.07 | 5 | 1.0 | 29.0 | 6 |
20 | 1.01 | 6 | 2.0 | 27.7 | 6 |
30 | 0.98 | 6 | 3.0 | 25.7 | 7 |
40 | 0.93 | 7 | 4.0 | 24.3 | 7 |
50 | 0.88 | 7 | 5.0 | 22.7 | 7 |
60 | 0.86 | 7 | 6.0 | 21.7 | 8 |
70 | 0.81 | 7 | 7.0 | 20.3 | 8 |
80 | 0.79 | 8 | 8.0 | 18.3 | 8 |
90 | 0.74 | 8 | 9.0 | 16.7 | 8 |
100 | 0.72 | 8 | 10.0 | 15.3 | 8 |
110 | 0.66 | 8 | 11 | 14.3 | 8 |
120 | 0.64 | 8 | 12 | 13.0 | 8 |
130 | 0.59 | 8 | 13 | 12.3 | 8 |
140 | 0.57 | 8 | 14 | 11.0 | 8 |
150 | 0.52 | 8 | |||
160 | 0.51 | 8 | |||
170 | 0.47 | 8 | |||
180 | 0.45 | 8 | |||
190 | 0.42 | 8 | |||
200 | 0.39 | 8 |
* Supply Voltage: 28.0 Volts
FILL RATES
12-Volt Compressor | |
---|---|
2.5 Gallon Tank | Fill Rate |
0 to 145 PSI | 5 min. 10 sec. (± 15 sec.) |
110 to 145 PSI | 1 min. 40 sec. (± 10 sec.) |
0 to 200 PSI | 8 min. 30 sec. (± 15 sec.) |
165 to 200 PSI | 2 min. 30 sec. (± 10 sec.) |
5.0 Gallon Tank | Fill Rate |
0 to 145 PSI | 10 min. 40 sec. (± 15 sec.) |
110 to 105 PSI | 3 min. 25 sec. (± 05 sec.) |
0 to 200 PSI | 17 min. 30 sec. (± 15 sec.) |
165 to 200 PSI | 4 min. 32 sec. (± 10 sec.) |
24-Volt Compressor | |
---|---|
2.5 Gallon Tank | Fill Rate |
0 to 145 PSI | 5 min. 00 sec. (± 10 sec.) |
110 to 145 PSI | 1 min. 30 sec. (± 5 sec.) |
0 to 200 PSI | 8 min. 00 sec. (± 15 sec.) |
165 to 200 PSI | 2 min. 00 sec. (± 5 sec.) |
5.0 Gallon Tank | Fill Rate |
0 to 145 PSI | 10 min. 32 sec. (± 15 sec.) |
110 to 105 PSI | 3 min. 22 sec. (± 10 sec.) |
0 to 200 PSI | 17 min. 28 sec. (± 15 sec.) |
165 to 200 PSI | 4 min. 38 sec. (± 10 sec.) |
* Due to redundant restrictions added to apparatus, for flow rate testing, actual flow rate at 0 psi may vary.
