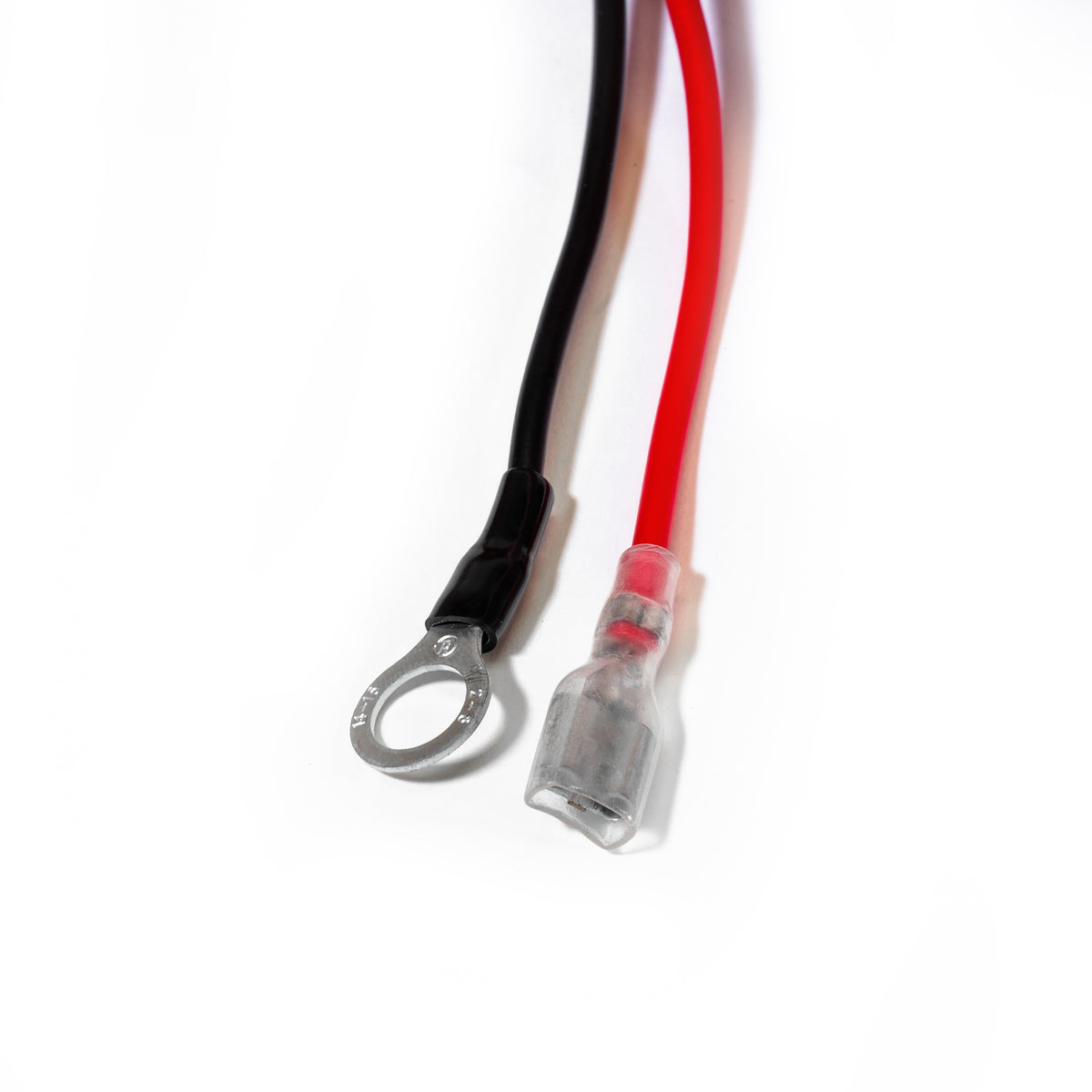

| FEATURES |
|---|
| – Omega Bracket |
| – Check Valve |
| – Vibration Isolators |
| – Mounting Hardware |
| – Installation Instructions |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| SPECIFICATIONS |
|---|
| – 12-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 10% @ 100 PSI |
| – Max. Working Pressure: 130 PSI |
| – Max. Air Tank Size: 1.0 Gallon |
| – Max. 12V Amp Draw: 13-Amps |
| – Ingress Protection Rating: IP54 |
| – Max Ambient Temp: +158°F |
| – Min Ambient Temp: -40°F |
| – Dimensions: 5.6″L x 3.1″W x 4.7″H |
| – Net Weight: 2.55 lbs. |
| – |
| RECOMMENDED COMPONENTS | |||||
|---|---|---|---|---|---|
| – 0.5 Gallon Tank (P/N 91005) | |||||
| – 12V Relay (P/N 93940) | |||||
| – 12V Sealed Relays (P/N 93944, 93950) | – Pressure Switches (P/N 90100, 90101, 90105) |
||||
| – Pressure Switches w/ Relay (P/N 90110, 90113) |
|||||
| – Sealed Pressure Switches (P/N 90212, 90223, 90226) |
|||||
| – Leader Hose w/out Check Valve (P/N 92801, 92803) |
|||||
| – Leader Hose w/ Check Valve (P/N 92807) | |||||
* For 12V Only.
Please Note: Use thread sealant for proper installation. Thread tape is not recommended.
Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
PERFORMANCE DATA
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 1.53 | 7 | 0 | 43.5 | 7 |
| 10 | 1.00 | 9 | 1.0 | 28.0 | 9 |
| 20 | 0.95 | 10 | 2.0 | 25.5 | 11 |
| 30 | 0.90 | 11 | 3.0 | 22.7 | 11 |
| 40 | 0.85 | 11 | 4.0 | 20.7 | 12 |
| 50 | 0.77 | 12 | 5.0 | 18.3 | 12 |
| 60 | 0.72 | 12 | 6.0 | 16.3 | 12 |
| 70 | 0.65 | 12 | 7.0 | 13.7 | 12 |
| 80 | 0.60 | 12 | 8.0 | 11.7 | 12 |
| 90 | 0.54 | 12 | 9.0 | 10.0 | 11 |
| 100 | 0.48 | 12 | |||
| 110 | 0.44 | 12 | |||
| 120 | 0.39 | 12 | |||
| 130 | 0.35 | 11 |
* Supply Voltage: 13.8 Volts
FILL RATES
| 0.5 Gallon Tank | Fill Rate |
|---|---|
| 0 to 105 PSI | 50 sec. (± 05 sec.) |
| 85 to 105 PSI | 15 sec. (± 03 sec.) |
| 0 to 120 PSI | 1 min. 05 sec. (± 05 sec.) |
| 90 to 120 PSI | 21 sec. (± 03 sec.) |
| 1.0 Gallon Tank | Fill Rate |
| 0 to 105 PSI | 1 min. 40 sec. (± 10 sec.) |
| 85 to 105 PSI | 30 sec. (± 05 sec.) |
| 0 to 120 PSI | 2 min. 10 sec. (± 10 sec.) |
| 90 to 120 PSI | 45 sec. (± 05 sec.) |
* Due to redundant restrictions added to apparatus, for flow rate testing, actual flow rate at 0 psi may vary.
