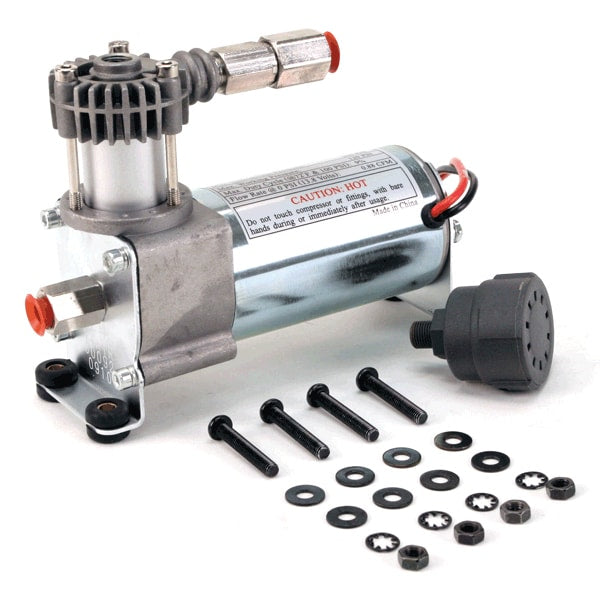

92C Compressor
P/N 00092 – 120 PSI / 1.03 CFM
VIAIR’s 90 Series compressors offer a light duty solution for smaller air requirements and are designed to fill no larger than a 1.0 gallon air tank. Multiple duty cycles, mounting, compressor finish, and intake options are available depending on model.
Additional Info Download:
| FEATURES |
|---|
| – Check Valve |
| – Vibration Isolators |
| – Mounting Hardware |
| – Direct Mount Air Filter Assembly |
| – Installation Instructions |
| – |
| – |
| – |
| – |
| SPECIFICATIONS |
|---|
| – 12-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 9% @ 100 PSI |
| – Max. Working Pressure: 120 PSI |
| – Max. Air Tank Size: 1.0 Gallon |
| – Max. Amp Draw: 10 Amps |
| – Ingress Protection Rating: IP54 |
| – Dimensions: 7.6″L x 2.0″W x 4.6″H |
| – Net Weight: 2.45 lbs. |
| RECOMMENDED COMPONENTS | |||||
|---|---|---|---|---|---|
| – 0.5 Gallon Tank (P/N 91005) | |||||
| – 12V Relay (P/N 93940) | |||||
| – Pressure Switches (P/N 90100, 90101) | |||||
| – Sealed Pressure Switch (P/N 90223) | |||||
| – | |||||
| – | |||||
| – | |||||
| – | |||||
| – | |||||
* For 12V Only.
Please Note: Use thread sealant for proper installation. Thread tape is not recommended.
Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
PERFORMANCE DATA
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 1.03 | 7 | 0 | 29.0 | 7 |
| 10 | 0.71 | 8 | 1.0 | 19.0 | 8 |
| 20 | 0.67 | 8 | 2.0 | 18.0 | 9 |
| 30 | 0.64 | 9 | 3.0 | 16.5 | 9 |
| 40 | 0.60 | 9 | 4.0 | 15.0 | 10 |
| 50 | 0.57 | 9 | 5.0 | 13.5 | 10 |
| 60 | 0.53 | 10 | 6.0 | 12.5 | 10 |
| 70 | 0.48 | 10 | 7.0 | 11.0 | 10 |
| 80 | 0.45 | 10 | 8.0 | 10.0 | 9 |
| 90 | 0.43 | 10 | |||
| 100 | 0.39 | 9 | |||
| 110 | 0.36 | 9 | |||
| 120 | 0.34 | 9 |
FILL RATES
| 0.5 Gallon Tank | Fill Rate |
|---|---|
| 0 to 105 PSI | 1 min. 08 sec. (± 05 sec.) |
| 85 to 105 PSI | 16 sec. (± 03 sec.) |
| 0 to 120 PSI | 1 min. 23 sec. (± 05 sec.) |
| 90 to 120 PSI | 27 sec. (± 03 sec.) |
| 1.0 Gallon Tank | Fill Rate |
| 0 to 105 PSI | 2 min. 20 sec. (± 10 sec.) |
| 85 to 105 PSI | 35 sec. (± 05 sec.) |
| 0 to 120 PSI | 3 min. 04 sec. (± 10 sec.) |
| 90 to 120 PSI | 54 sec. (± 05 sec.) |
* Supply Voltage: 13.8 Volts
