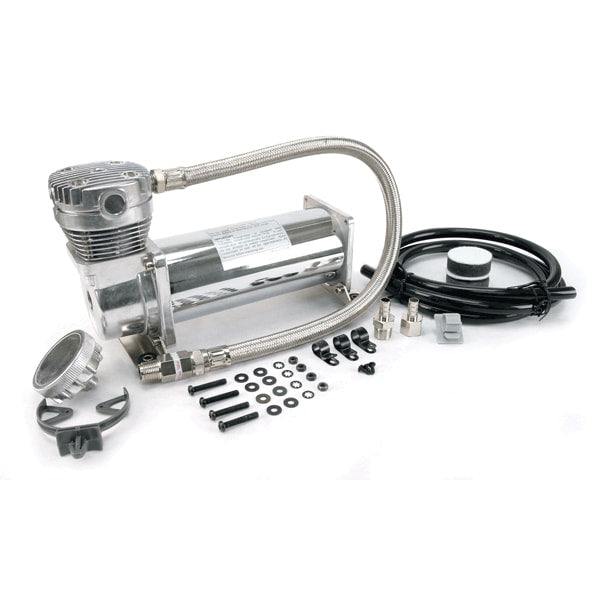

FEATURES |
---|
– Thermal Overload Protector |
– Check Valve |
– Vibration Isolators |
– Mounting Hardware |
– Stainless Steel Braided Leader Hose |
– Air Line for Remote Mount Air Filter |
– Remote Mount Air Filter Assembly |
– (2) Replacement Air Filter Elements |
– Installation Instructions |
– |
– |
– |
– |
– |
– |
SPECIFICATIONS |
---|
– 12-Volt |
– Permanent Magnetic Motor |
– Duty Cycle: 100% @ 100 PSI |
– Max. Working Pressure: 150 PSI |
– Max. Air Tank Size: 5.0 Gallon |
– Max. 12V Amp Draw: 24-Amps |
– Ingress Protection Rating: IP67 |
– Max Ambient Temp: +158°F |
– Min Ambient Temp: -40°F |
– Dimensions: 11.5″L x 4.3″W x 6.5″H |
– Net Weight: 11.10 lbs. |
– |
– |
– |
– |
RECOMMENDED COMPONENTS | |||||
---|---|---|---|---|---|
– 0.5 Gallon Tank (P/N 91005) | |||||
– 1.0 Gallon Tank (P/N 91010) | |||||
– 1.5 Gallon Tank (P/N 91015) | |||||
– 2.0 Gallon Tank (P/N 91022) | |||||
– 2.5 Gallon Tank (P/N 91025) | |||||
– 5.0 Gallon Tank (P/N 91050) | |||||
– 12V Relay (P/N 93940) | |||||
– 12V Sealed Relays (P/N 93944, 93950) | |||||
– Pressure Switches (P/N 90100, 90101, 90102) | |||||
– Pressure Switches w/ Relay (P/N 90110, 90111, 90113) |
|||||
– Sealed Pressure Switches (P/N 90217, 90223, 90227) |
|||||
– Leader Hose w/out Check Valve (P/N 92792) | |||||
– Leader Hose w/ Check Valve (P/N 92791) |
* For 12V Only.
Please Note: Use thread sealant for proper installation. Thread tape is not recommended.
Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
PERFORMANCE DATA
PSI | CFM | A | BAR | LPM | A |
---|---|---|---|---|---|
0 | 1.80 | 13 | 0 | 51.0 | 12 |
10 | 1.75 | 14 | 1.0 | 47.6 | 15 |
20 | 1.60 | 16 | 2.0 | 43.3 | 17 |
30 | 1.52 | 17 | 3.0 | 38.2 | 19 |
40 | 1.39 | 19 | 4.0 | 34.0 | 21 |
50 | 1.27 | 20 | 5.0 | 30.5 | 21 |
60 | 1.18 | 21 | 6.0 | 28.1 | 22 |
70 | 1.09 | 21 | 7.0 | 26.4 | 23 |
80 | 1.04 | 22 | 8.0 | 25.0 | 24 |
90 | 0.97 | 22 | 9.0 | 23.0 | 23 |
100 | 0.94 | 23 | 10.0 | 21.0 | 22 |
110 | 0.90 | 24 | |||
120 | 0.86 | 24 | |||
130 | 0.81 | 23 | |||
140 | 0.76 | 22 | |||
150 | 0.72 | 22 |
* Supply Voltage: 13.8 Volts
FILL RATES
2.5 Gallon Tank | Fill Rate |
---|---|
0 to 105 PSI | 1 min. 55 sec. (± 10 sec.) |
85 to 105 PSI | 28 sec. (± 05 sec.) |
0 to 145 PSI | 3 min. 02 sec. (± 10 sec.) |
110 to 145 PSI | 59 sec. (± 05 sec.) |
5.0 Gallon Tank | Fill Rate |
0 to 105 PSI | 4 min. 00 sec. (± 10 sec.) |
85 to 105 PSI | 58 sec. (± 05 sec.) |
0 to 145 PSI | 6 min. 25 sec. (± 15 sec.) |
110 to 145 PSI | 2 min. 11 sec.(± 10 sec.) |
