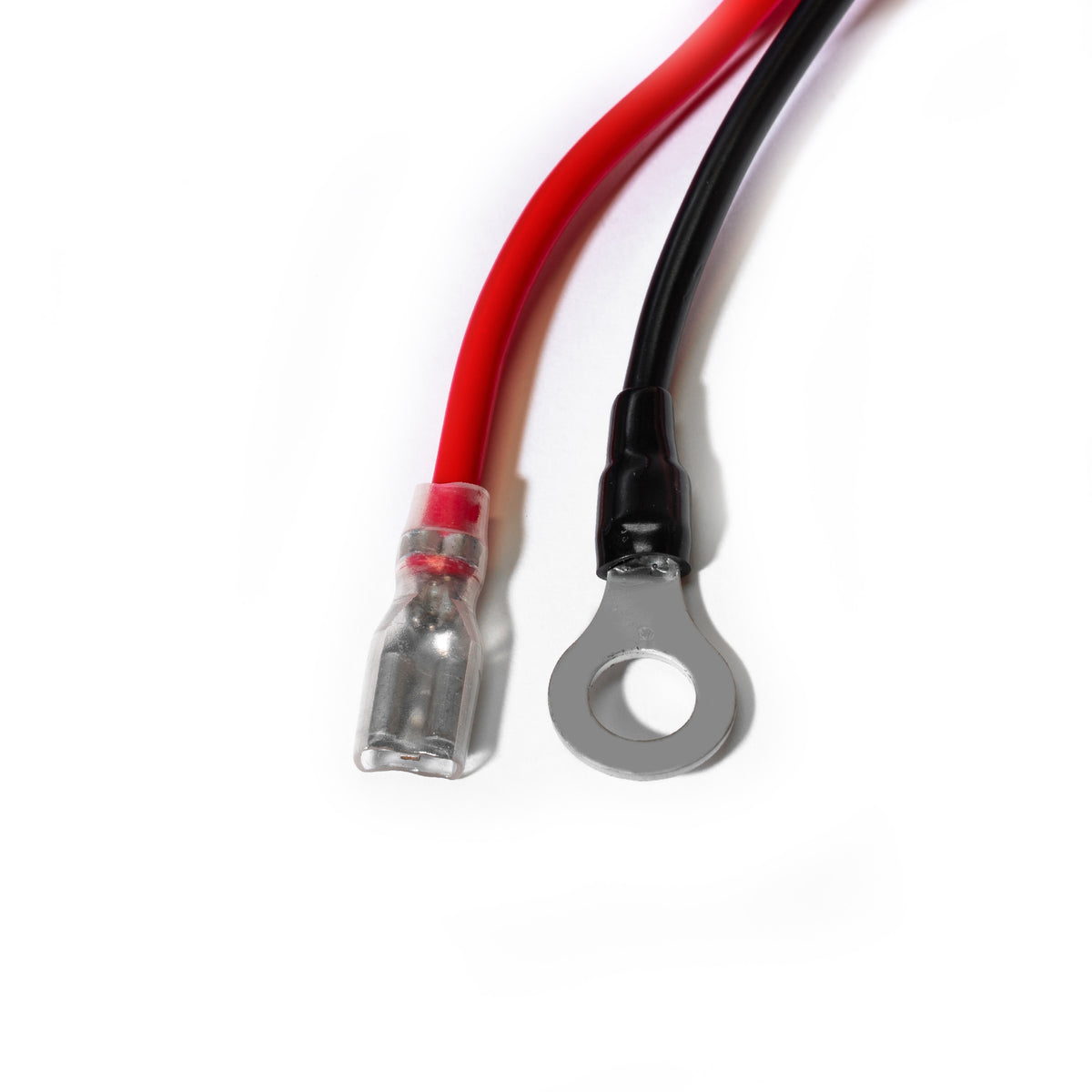

| FEATURES |
|---|
| – Thermal Overload Protector |
| – Check Valve |
| – Vibration Isolators |
| – Mounting Hardware |
| – Stainless Steel Braided Leader Hose |
| – Air Line for Remote Mount Air Filter |
| – Remote Mount Air Filter Assembly |
| – (2) Replacement Air Filter Elements |
| – Installation Instructions |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| SPECIFICATIONS |
|---|
| – 12-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 100% @ 100 PSI |
| – Max. Working Pressure: 150 PSI |
| – Max. Air Tank Size: 5.0 Gallon |
| – Max. 12V Amp Draw: 23-Amps |
| – Ingress Protection Rating: IP67 |
| – Max Ambient Temp: +158°F |
| – Min Ambient Temp: -40°F |
| – Dimensions: 10.6″L x 4″W x 6.87″H |
| – Net Weight: 10.80 lbs. |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| RECOMMENDED COMPONENTS | |||||
|---|---|---|---|---|---|
| – 0.5 Gallon Tank (P/N 91005) | |||||
| – 1.0 Gallon Tank (P/N 91010) | |||||
| – 1.5 Gallon Tank (P/N 91015) | |||||
| – 2.0 Gallon Tank (P/N 91022) | |||||
| – 2.5 Gallon Tank (P/N 91025) | |||||
| – 5.0 Gallon Tank (P/N 91050) | |||||
| – 12V Relay (P/N 93940) | |||||
| – 12V Sealed Relays (P/N 93944, 93950) | |||||
| – Pressure Switches (P/N 90100, 90101, 90102) |
|||||
| – Pressure Switches w/ Relay (P/N 90110, 90111, 90113) |
|||||
| – Sealed Pressure Switches (P/N 90217, 90223, 90227) |
|||||
| – Leader Hose w/out Check Valve (P/N 92802, 92804, 92809) |
|||||
| – Leader Hose w/ Check Valve (P/N 92793, 92805) |
|||||
* For 12V Only.
Please Note: Use thread sealant for proper installation. Thread tape is not recommended.
Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
PERFORMANCE DATA
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 1.80 | 12 | 0 | 51.0 | 12 |
| 10 | 1.75 | 14 | 1.0 | 47.6 | 15 |
| 20 | 1.60 | 16 | 2.0 | 43.3 | 17 |
| 30 | 1.52 | 17 | 3.0 | 38.2 | 18 |
| 40 | 1.39 | 18 | 4.0 | 34.0 | 19 |
| 50 | 1.27 | 19 | 5.0 | 30.5 | 20 |
| 60 | 1.18 | 19 | 6.0 | 28.1 | 21 |
| 70 | 1.09 | 20 | 7.0 | 26.4 | 22 |
| 80 | 1.04 | 20 | 8.0 | 25.0 | 23 |
| 90 | 0.97 | 21 | 9.0 | 23.0 | 22 |
| 100 | 0.94 | 22 | 10.0 | 21.0 | 21 |
| 110 | 0.90 | 23 | |||
| 120 | 0.86 | 23 | |||
| 130 | 0.81 | 22 | |||
| 140 | 0.76 | 21 | |||
| 150 | 0.72 | 20 |
* Supply Voltage: 13.8 Volts
FILL RATES
| 2.5 Gallon Tank | Fill Rate |
|---|---|
| 0 to 105 PSI | 1 min. 55 sec. (± 10 sec.) |
| 85 to 105 PSI | 28 sec. (± 05 sec.) |
| 0 to 145 PSI | 3 min. 02 sec. (± 10 sec.) |
| 110 to 145 PSI | 59 sec. (± 05 sec.) |
| 5.0 Gallon Tank | Fill Rate |
| 0 to 105 PSI | 4 min. 00 sec. (± 10 sec.) |
| 85 to 105 PSI | 58 sec. (± 05 sec.) |
| 0 to 145 PSI | 6 min. 25 sec. (± 15 sec.) |
| 110 to 145 PSI | 2 min. 11 sec.(± 10 sec.) |
