400C Compressor

P/N 40040 – 150 PSI / 2.62 CFM (12V)
P/N 40052 – 150 PSI / 2.33 CFM (24V)

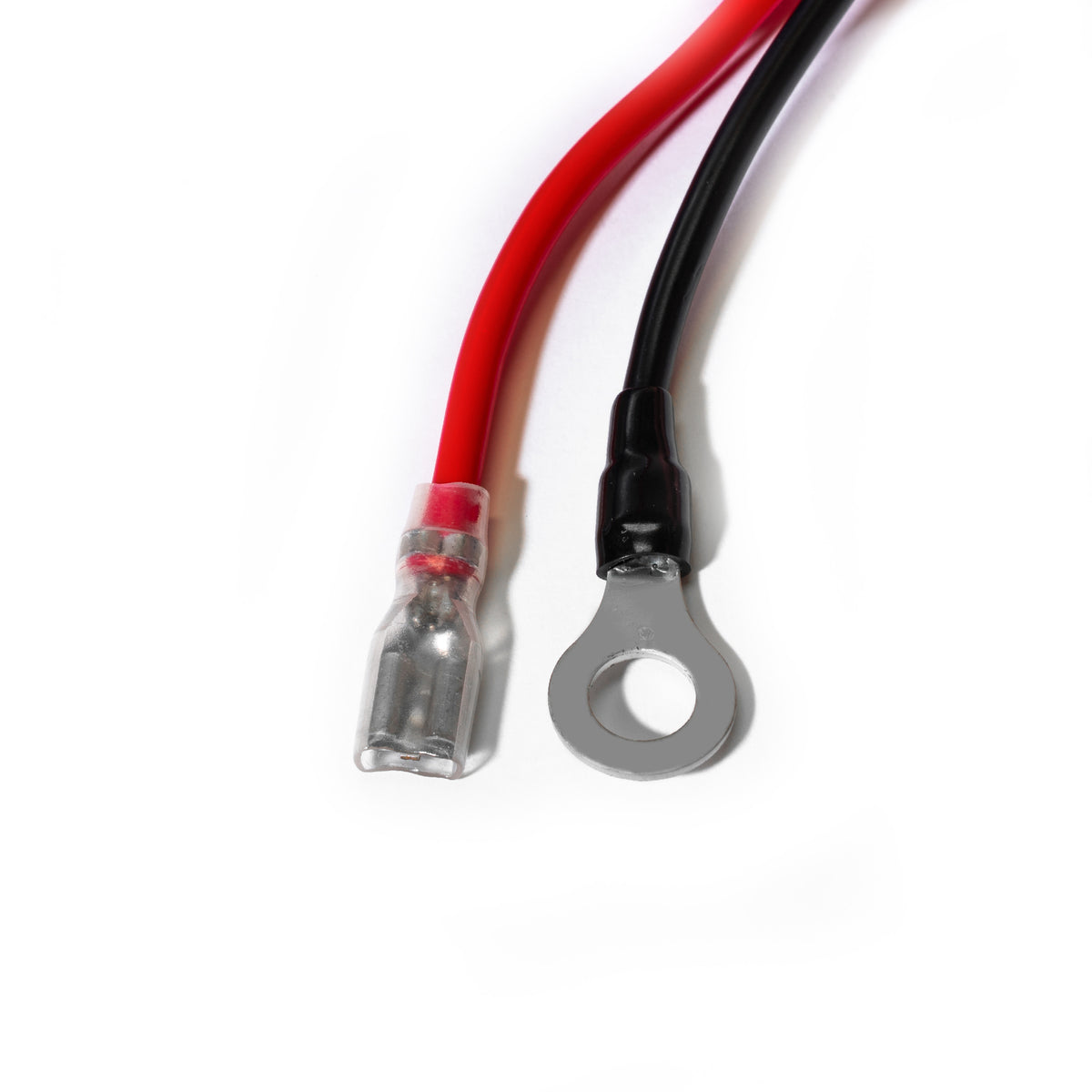

400C is a 33% duty cycle compressor that works quickly and efficiently putting out 2.62 CFM/12V and 2.33 CFM/24V flow at zero PSI head pressure. Features include a standard 1/4” NPT stainless steel braided leader hose with inline check valve and insulated wiring for simple installation.

Air Tanks Icon Image




40040 Manual ‣
40052 Manual ‣
Dimensional Drawing ‣
Wiring Diagram ‣
SKU: 40040 Category:
FEATURES
– Thermal Overload Protector
– Check Valve
– Vibration Isolators
– Mounting Hardware
– Stainless Steel Braided Leader Hose
– Air Line for Remote Mount Air Filter
– Remote Mount Air Filter Assembly
– (2) Replacement Air Filter Elements
– Installation Instructions
–
–
–
–
–
–
–
–
–
–
–
SPECIFICATIONS
– 12-Volt / 24-Volt
– Permanent Magnetic Motor
– Duty Cycle: 33% @ 100 PSI
– Max. Working Pressure: 150 PSI
– Max. Air Tank Size: 5.0 Gallon
– Max. 12V Amp Draw: 30-Amps
– Max. 24V Amp Draw: 15 Amps
– Ingress Protection Rating: IP67
– Max Ambient Temp: +158°F
– Min Ambient Temp: -40°F
– Dimensions: 9″L x 4″W x 6.75″H
– Net Weight: 8.65 lbs.
–
–
–
–
–
–
–
–
RECOMMENDED COMPONENTS

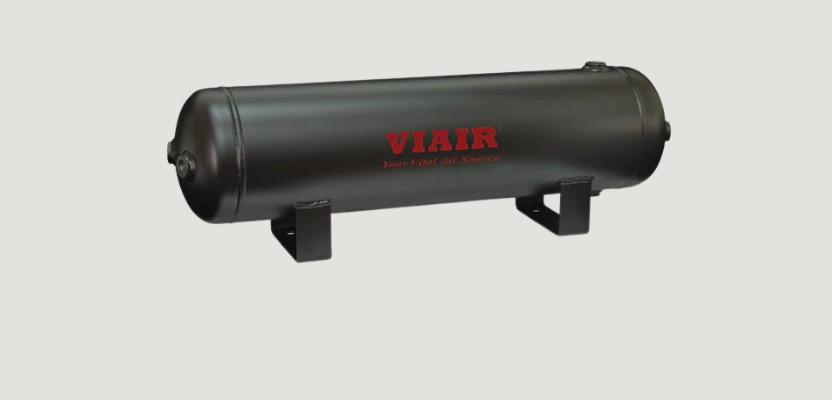

– 0.5 Gallon Tank (P/N 91005)
– 1.0 Gallon Tank (P/N 91010)
– 1.5 Gallon Tank (P/N 91015)
– 2.0 Gallon Tank (P/N 91022)
– 2.5 Gallon Tank (P/N 91025)

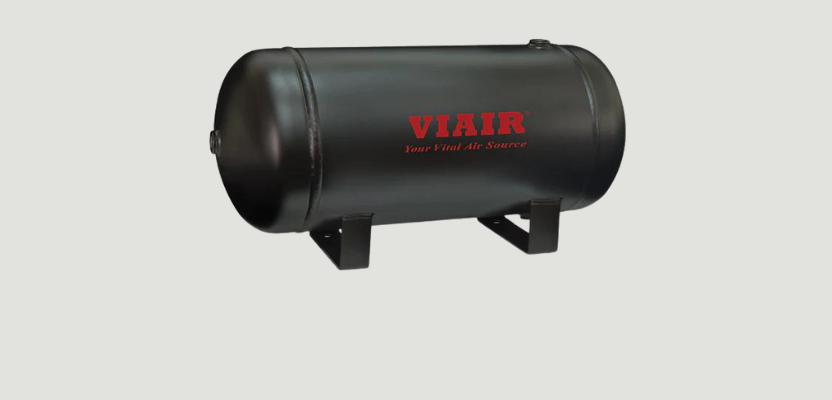

– 5.0 Gallon Tank (P/N 91050)
– 12V Relay (P/N 93940)
– 24V Relay (P/N 93943)
– 12V Sealed Relays (P/N 93944, 93950)
– 24V Sealed Relays (P/N 93943, 93950)
– Pressure Switches
(P/N 90100, 90101, 90102)
– Pressure Switches w/ Relay
(P/N 90110, 90111, 90113)
– Sealed Pressure Switches
(P/N 90217, 90223, 90227)
– Leader Hose w/out Check Valve
(P/N 92802, 92804, 92809)
– Leader Hose w/ Check Valve
(P/N 92793, 92805)

* For 12V Only. ** For 24V Only.

Please Note: Use thread sealant for proper installation. Thread tape is not recommended.
Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

PERFORMANCE DATA

12-Volt Compressor
PSI CFM A BAR LPM A
0 2.62 16 0 74.0 16
10 2.39 18 1.0 65.0 20
20 2.21 20 2.0 60.0 23
30 2.11 22 3.0 56.0 25
40 2.01 24 4.0 53.0 27
50 1.93 25 5.0 49.0 28
60 1.84 26 6.0 46.0 28
70 1.73 27 7.0 42.0 28
80 1.65 27 8.0 38.0 28
90 1.52 27 9.0 35.0 27
100 1.45 27 10.0 31.0 27
110 1.35 27
120 1.26 27
130 1.19 27
140 1.08 27
150 1.01 26

* Supply Voltage: 13.8 Volts

24-Volt Compressor
PSI CFM A BAR LPM A
0 2.33 7 0 66.0 7
10 2.26 8 1.0 63.3 9
20 2.20 10 2.0 60.8 10
30 2.14 10 3.0 57.0 11
40 2.04 11 4.0 53.0 12
50 1.94 12 5.0 48.3 12
60 1.86 12 6.0 45.7 12
70 1.74 12 7.0 40.5 12
80 1.70 12 8.0 38.2 12
90 1.59 12 9.0 34.6 12
100 1.50 12 10.0 32.0 12
110 1.40 12 11.0 29.0 11
120 1.31 12 12.0 25.5 11
130 1.24 12 13.0 23.3 10
140 1.17 12
150 1.10 12

* Supply Voltage: 28.0 Volts

FILL RATES

12-Volt Compressor
2.5 Gallon Tank Fill Rate
0 to 145 PSI 2 min. 27 sec. (± 05 sec.)
110 to 145 PSI 55 sec. (± 03 sec.)
5.0 Gallon Tank Fill Rate
0 to 105 PSI 2 min. 55 sec. (± 10 sec.)
85 to 105 PSI 45 sec. (± 05 sec.)
0 to 145 PSI 4 min. 50 sec. (± 10 sec.)
110 to 145 PSI 1 min. 40 sec. (± 05 sec.)
24-Volt Compressor
2.5 Gallon Tank Fill Rate
0 to 105 PSI 1 min. 24 sec. (± 05 sec.)
85 to 105 PSI 20 sec. (± 03 sec.)
0 to 145 PSI 2 min. 16 sec. (± 05 sec.)
110 to 145 PSI 47 sec. (± 05 sec.)
5.0 Gallon Tank Fill Rate
0 to 105 PSI 2 min. 38 sec. (± 10 sec.)
85 to 105 PSI 38 sec. (± 03 sec.)
0 to 145 PSI 4 min. 08 sec. (± 10 sec.)
110 to 145 PSI 1 min. 20 sec. (± 05 sec.)
