380C Dual Performance Value Pack

380C Dual Performance Value Pack

Part Number: 38002
$339.95
$339.95
380C Dual Performance Value Pack 380C Dual Performance Value Pack 380C Dual Performance Value Pack
380C Dual Performance Value Pack
380C Dual Performance Value Pack
380C Dual Performance Value Pack

380C Dual Performance Value Pack

380C Dual Performance Value Pack

Part Number: 38002
$339.95
$339.95

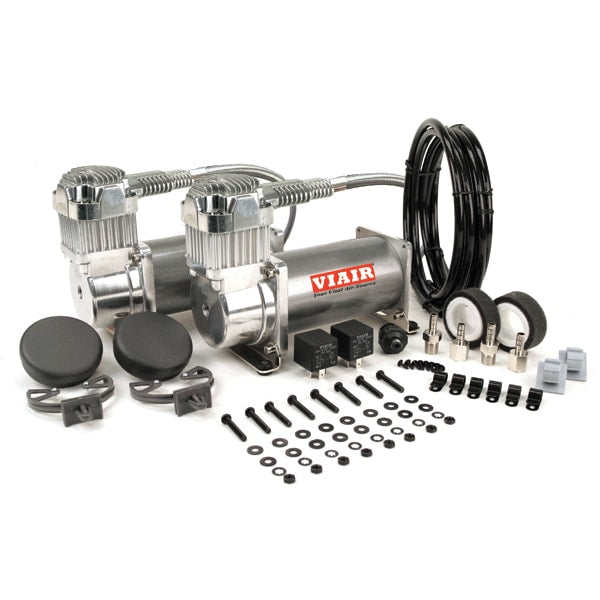

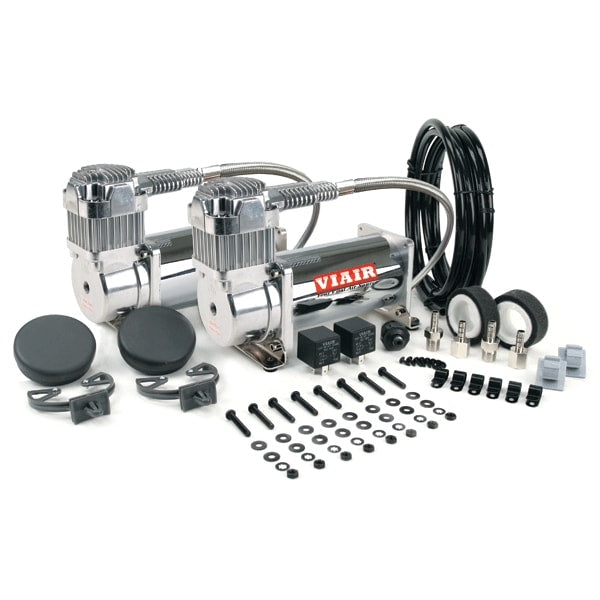

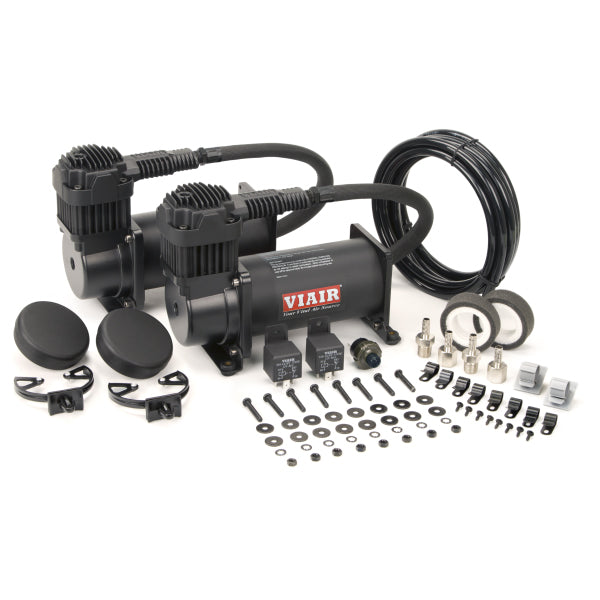

The VIAIR 380C Dual Performance Value Pack is ideal for air suspension systems capable of providing a maximum of 200 PSI and a 100% duty cycle. The kit features two 12-volt Pewter, Chrome, or Stealth Black 380C air compressors, two heavy duty 40-amp relays and a 165 PSI cut-on, 200 PSI cut-off heavy-duty pressure switch. Each 380C Dual Performance Value Pack also comes with remote mountable air filter assemblies and mounting hardware.

Color: Pewter

380C Dual Performance Value Pack

Designed by

VIAIR Corp

Unmatched Performance

High Pressure & Duty Cycle

Innovative Design

Up to 50% quieter

What’s in the Box

Specifications

Performance

Fill Rates

Resources

SPECS:

  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI)
  • Max. Working Pressure: 200 PSI
  • Max. Air Tank Size: 10.0 Gallon
  • Combined Max. Amp Draw: 46-Amps
  • Ingress Protection Rating: IP67
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F
  • Dimensions: 9″L x 4″W x 6.75″H (Each Unit)
  • Net Weight: 17.50 lbs.

FEATURES:

  • (2) 380C (Chrome, Pewter, or Stealth Black) Air Compressors
    w/Thermal Overload Protectors
  • (2) Air Filter Assemblies
  • (2) Remote Mount Brackets
  • (2) Sets of Remote Mount Fittings
  • (2) Sets of Spare Air Filter Elements
  • (2) Leader Hose Clips
  • (6) Air Line Clips with Included Hardware
  • (8) Sets of Nuts, Bolts, Washers and Lock Washers
  • (2) 40-Amp Relays
  • (1) One Heavy Duty Pressure Switch (165 PSI on, 200 PSI off)
  • (2) Stainless Steel Braided Leader Hoses with Inline Check Valve
  • Air Line (For Remote Mount Filter Installation)

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

12-VOLT COMPRESSOR - Supply Voltage 13.8 Volts

Product Resources

Find all the information available for this product

User Manual Wiring Diagram Dimensional Drawing
